Yellow_Super_Seven’s Flashy LED Lights for Westfields

west1

Westfield’s standard caravan rear lights are pretty terrible. After seeing the caterham replacements I make, Ben Yellow_Super_Seven wanted some that would fit the flat part of his Westfield’s wing and here they are:

How much?

  • I can supply the cowls & led lamps with the econoseal or bullet connectors fitted for £140 delivered which are drop-in replacements for the caterham clusters.
  • if you’re outside of the UK I can help you find the LED lamps locally and just send you the cowls and fittings for £50

What are they like size-wise?

They’re about the same size as the westfield caravan lights, but they have a cut-away to fit the edge of the westfield wing

How to fit them:

  • unbolt the old lights removing the cables.
  • reattach the grommets to the new lights.
  • measure and drill two 10mm holes 90mm apart to the sides of the central hole. (use the gasket or masking tape to get it all central and level)
  • get some loctite ready
  • fit the lights with the supplied nuts. make sure you get them the right orientation as the indicator is animated (small arrow on face points outwards, if you get it wrong, just undo the bolts and flip the light unit). use loctite on everything.
  • reconnect the econoseals or bullet connectors through the rear panel.
  • go out and drive!

westie-led

Gotchas:

  • you will need to replace your flasher relay with an LED relay if you’ve not done this yet.
  • you may need to add a subloom to the indicator tell-tale if it has a common ground here
  • MOT requires a reflector which these units don’t have, however the lamp units ARE homologated for EU market. but realistically, who is going to notice or care.

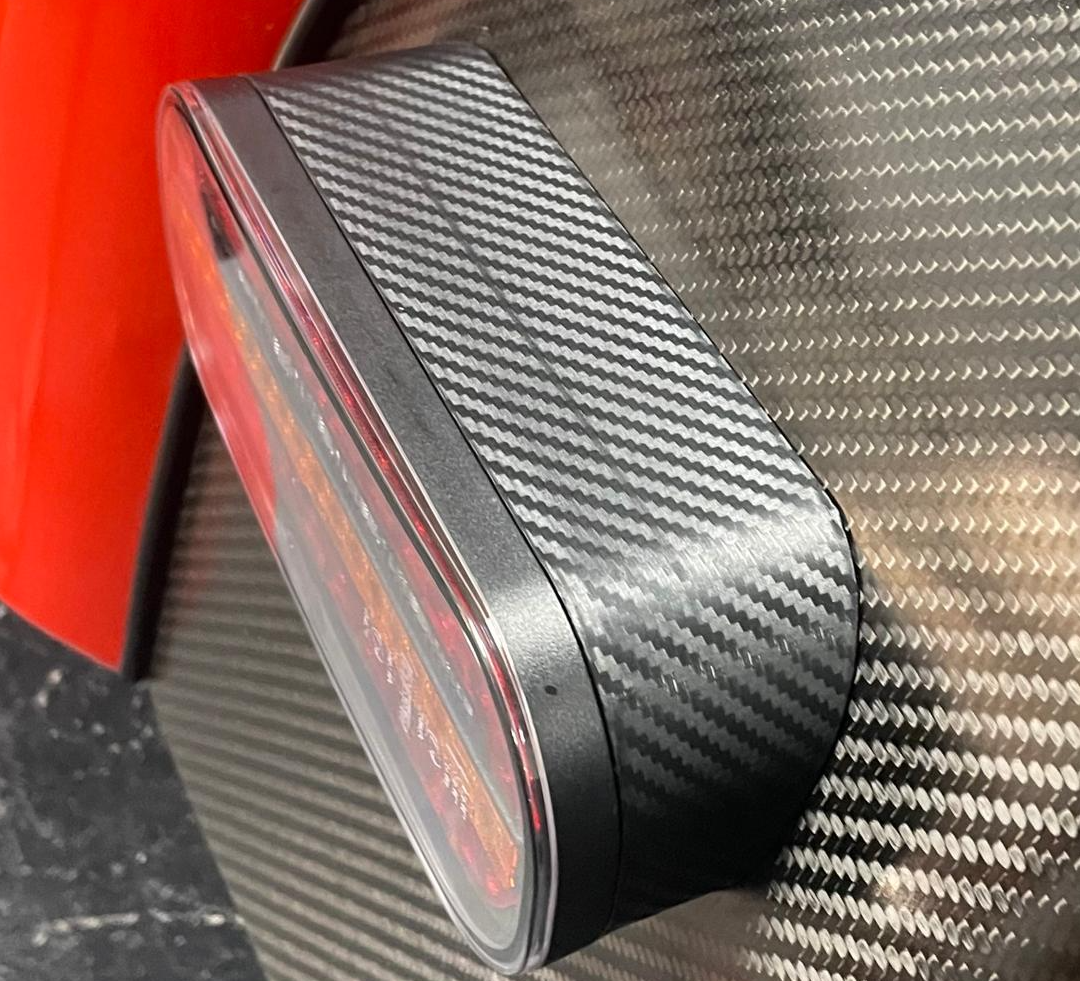

But I have a carbon-fiber fetish…

Ok, then wrap them in carbon vinyl: col-carbon.png

How to order:

To order, USE THIS FORM pick westfield LED

Delivery:

Usually delivery is within a week, sometimes it is a little more, sometimes it’s next day. If you need it rushing, please get in touch and I can often expedite it. International delivery is usually about £15 to the US, Japan or Oz, and around £9 to France, Germany etc.

Payment:

Payment is arranged by bank transfer or paypal. you will receive an email shortly after you order with details. if you’ve not received an email, please check your spam-folder and/or get in touch via john@uberniche.co.uk

Colours:

I have many colours available in PLA. In PETG generally only black and grey. not all products are available in PLA as it is not stable under high temperature. if you have a special request, just ask as I may be able to help.

Contact:

to contact me, either email john@uberniche.co.uk or hit me up on Instagram
