Lifeline Mirrors with Carbon-fibre-reinforced Adaptors

Caterham’s mirrors are terrible. They’re enormous and because they’re not convex, you can’t see anything. The original Eccles mounts are only attached at the hinge so are prone to shaking because of the leverage on the 10cm long part.
Spa Mirrors have a terrible mount that is not adjustable without entirely removing the mirror. I do offer some friction cups that help with this, but it’s still an internal adjustment.

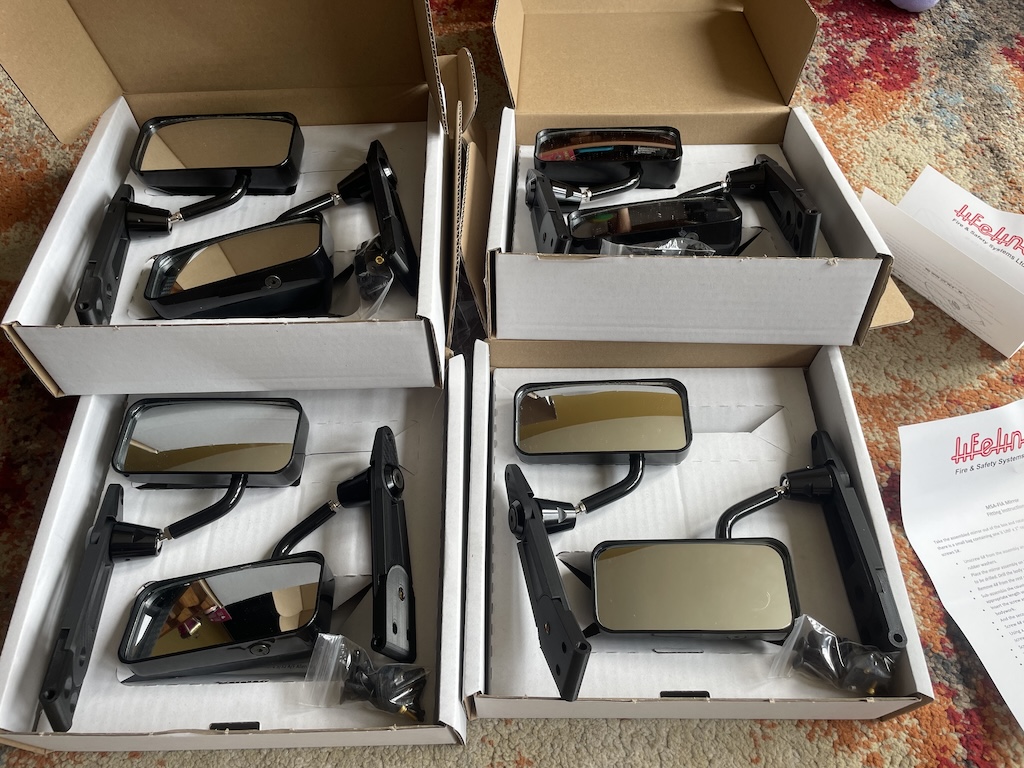

Lifeline Mirrors

They are convex, externally adjustable and have short arms. The large M6 Bolt they use for stability means they won’t go through the existing holes in the doors.

These stiff, articulated mirror mounts can fit the myriad dimensions of holes in Caterham side-screens. They have 2 pivots and can span a large range which fits any side screens. The mounts also stop the mirrors from clouting the windscreen when you open the door.

£150+£4 delivery

I’m using Stripe for payments now as it’s less stress and time for me: ORDER HERE

Fitting instructions

tap the brass hinge pins out of the original hinges (or simply mount the hinge with the pin on the stanchion)
remove your hinge on the side screen, keep the washers and bolts.
unscrew the outer fitting of the base if it is attached.
offer up the articulated mount to the side-screen and push the bolts through to line it all up. then tighten up the inner part of the base with a spanner and hex-key (loctite it first), being careful to not move the parts. this can be tightened tightly. You can refit the small screw in the pivot (loctite it!).
refit the outer base with the mirror. you can tighten down the mirror with a 19mm spanner until the mirror is nice and tight but still adjustable. once you have this tight enough, screw in the grub/caphead screw into the base outer to lock the mirror’s tension in place. don’t over-tighten this as it’s only aluminium and will strip.

Delivery:

Usually delivery is within a week, sometimes it is a little more, sometimes it’s next day. This isn’t my day job so if you need it rushing, please get in touch and I can often expedite it. International delivery is usually about £15 to the US, Japan or Oz, and around £13 to France, Germany etc.

Payment:

Payment is arranged by bank transfer or paypal to my wife’s account. you will receive an email within day or two after you order with details. if you’ve not received an email, please check your spam-folder and/or get in touch via john@uberniche.co.uk

Colours:

I have many colours available in PLA. In PETG generally only black and grey. not all products are available in PLA as it is not stable under high temperature. if you have a special request, just ask as I may be able to help.

Contact:

to contact me, either email john@uberniche.co.uk or hit me up on Instagram
